Here’s how it works: scalamobil in simple terms
By calling the video you agree that your data will be transmitted to YouTube and that you have read the privacy policy.
BROCHURES AND DOCUMENTS
Discover in the brochure an overview of features, accessories and benefits of the scalacombi - download, print and share now!
The downloads also contain additional documents such as user manuals and quick guides.

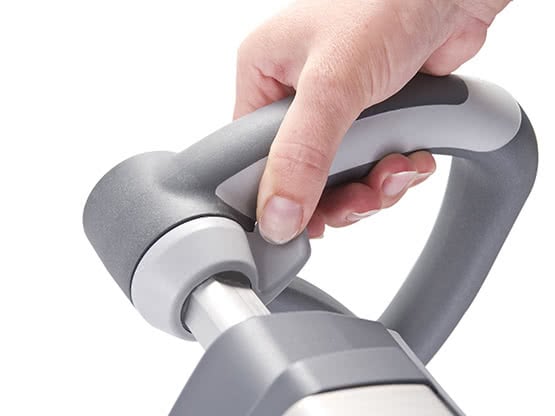

Handlebar
- ErgoBalance handles developed by specialists for a secure hold and which require minimum effort
- With soft cushions at points where high pressure levels are experienced
- Separate control elements to preselect the climbing direction and to initiate climbing
- Ergonomic, fatigue-free main switch, ideal even for longer climbs
- SoftTouch comfort cushion on the rear of the control unit to place on the thigh for additional support when climbing stairs backwards
- The widths of the left and right handles can be adjusted separately to adapt to narrow stairwells or the user’s body shape
- Continuously variable handlebar height adjustment
- The handlebar can be easily fitted to and removed from the drive without cables

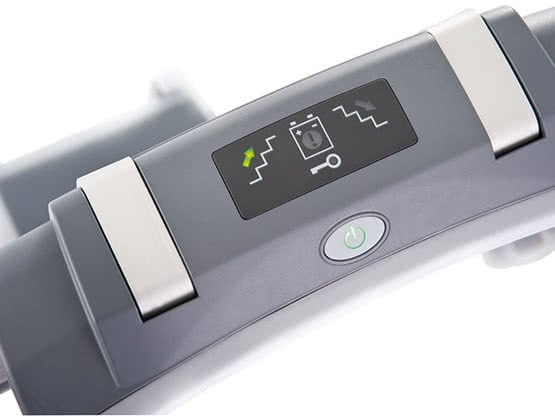

Display with various functions
- Indication of holding angle:
- Green: ideal angle
- Yellow: acceptable angle
- Red: unsafe angle
- Further status information:
- Left: drive modes (Auto, Assist, Manual).
- Right: main switch, immobiliser, obstacle mode.
- 5 segment battery display in increments of 20%

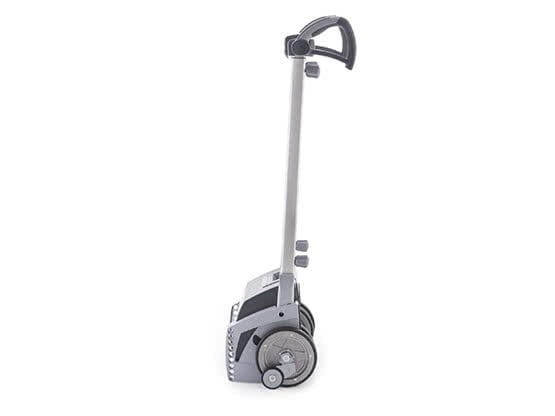

Climbing unit with automatic safety brakes
- Patented climbing mechanism, works on virtually any set of stairs
- Tyres made of abrasion-resistant material to avoid scuffing the stair surface
- Four automatic safety brakes with improved capability for overcoming obstacles stop the scalamobil reliably before each step edge
- Casing in sturdy aluminium lightweight design
- With convenient carrying handle for easy stowage

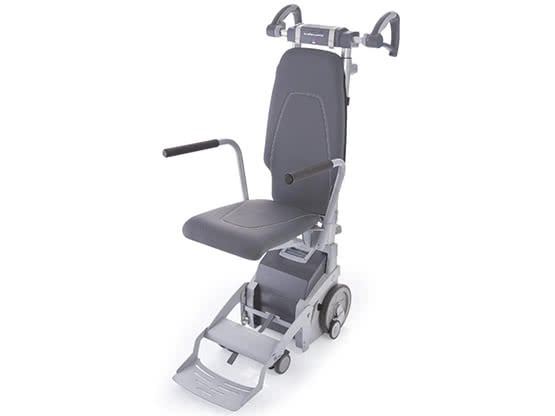

Seat unit with backrest
- With integrated seat, e.g. for persons who are not absolutely dependent on a wheelchair
- Ideal for narrow stairwells and tight spaces, e.g. if a wheelchair is too large
- Soft padding and attractive design of seat and back rest
- Steerable front wheels with locking brake
- Two simple steps and the chair is compactly folded for stowing thanks to the folding seat and footrests
- Easily disassembled for transport in seconds in a few simple steps
- Optionally available with comfortable chest-shoulder belt or automatic lap belt

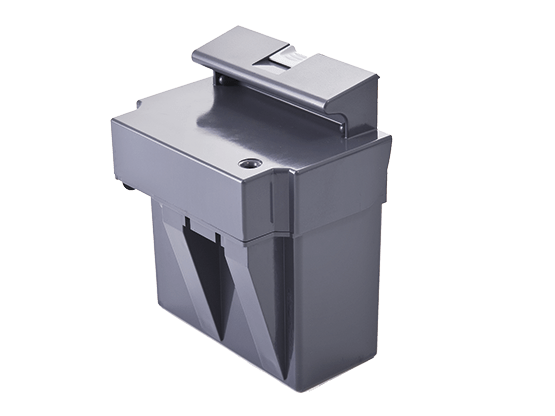

Battery pack
- One charge can climb up to 300 steps (with weight of the person of around 70 kg)
- Can be replaced very simply to extend the range
- The battery can be charged separately from scalamobil

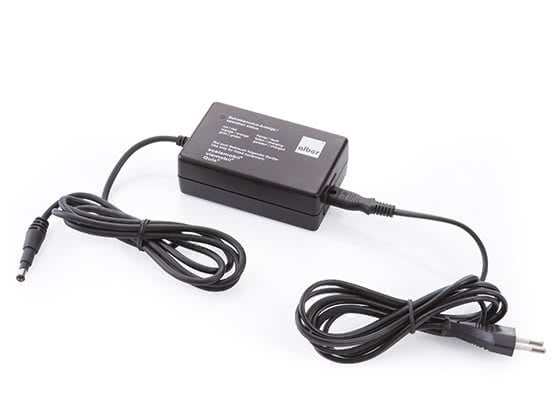

Automatic battery charger
- Electronic automatic charge and switch off mechanism
- Indicator for charge control
- Automatic adaptation to mains voltage of 90 – 240 V (useful when traveling)
Weight and dimensions of individual parts
Climbing unit
scalacombi (S36)
17.9 kg
Battery pack
scalacombi (S36)
3 kg
Handlebar
scalacombi (S36)
4.9 kg
Seat unit
scalacombi (S36)
12.5 kg
Width
scalacombi (S36)
49 - 52 cm
Height
scalacombi (S36)
120 - 160 cm
scalacombi is CE-compliant according to the European Medical Devices Directive (MDR) 2017/745 and is tested and certified on a voluntary basis by the TÜV Süd, in line with the currently valid edition of the product standard ISO 7176-28.
